Detect overloads instantaneously with installed torque limiter

Overview

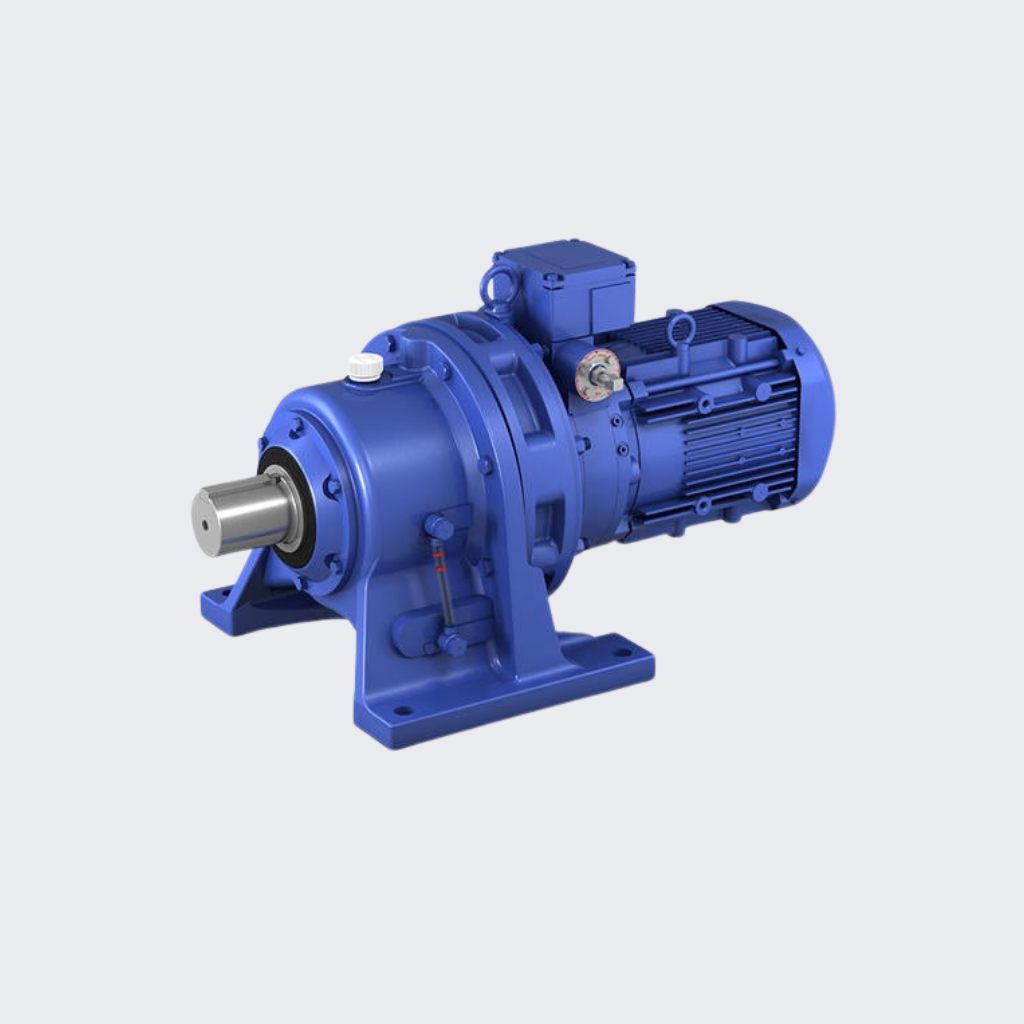

Cyclo gearmotor with installed torque limiter to detect overloads
• Protects your valuable machines from catastrophic failure.
• The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible.

Technical Info

FEATURES

Compact
Compact Cyclo reducer boasts a high reduction ratio, high efficiency, and a small number of parts, including a superior built-in torque sensor (spring / limit switch type, load cell type).

High Accuracy and Reliability
The sensor base consists of coiled springs or load cells, and features high accuracy and reliability. (Accuracy of configured torque ±5 – ±10%)

Allows for Economical Equipment Design
The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible.

Operates During Momentary Overload
The mechanical torque detection mechanism allows for a shorter detection time compared to thermal relays, detecting overloads instantaneously.

Wide Range of Torque Adjustment
The adjustment range for configuring the torque is a wide ±25%, which means adjustments can easily be made on-site to match the actual torque of the equipment. (However, it must be within the maximum and the minimum configured torque).

Safe Unattended Operation
Built-in buzzer and indicator light in the motor operation circuit ensures a safe unattended operation. By using either the double or triple safety models, it is also possible to drive the auxiliary motor for a thickener shaft.

Combine with Other Protection Equipment
Can be combined with shear pins to achieve double or triple protection against overloads.

Break-resistant Teeth
Unlike a regular involute tooth-gear, the “cycloidal disc,” which is the gear for the Cyclo Reducer, features a distinctively smooth curve
